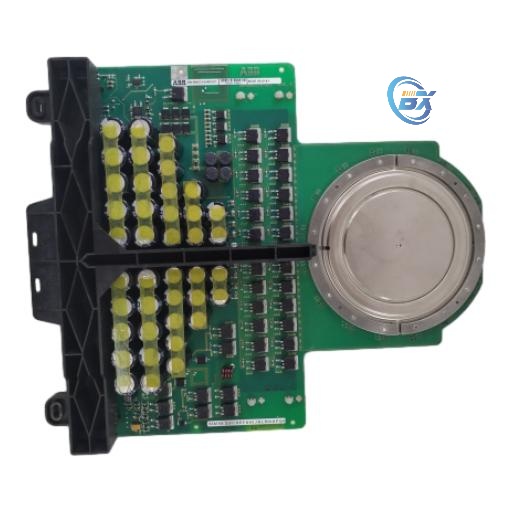

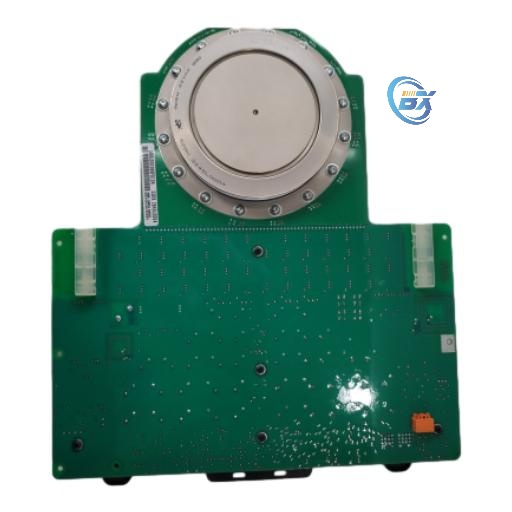

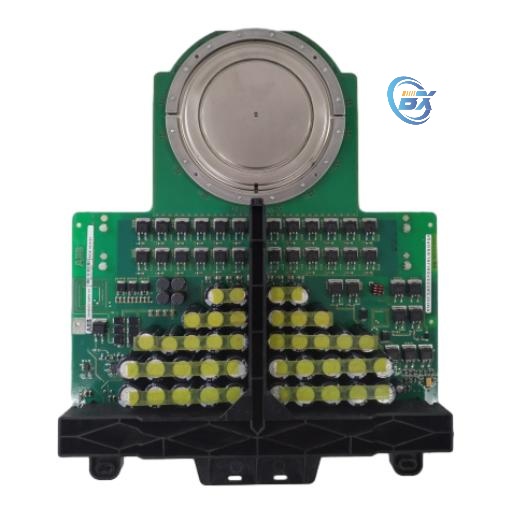

ABB 5SHX2645L0004 belongs to ABB’s high-voltage thyristor valve module, commonly used in power systems such as high-voltage direct current transmission (HVDC), industrial frequency converters, static var compensators (SVC), etc., to undertake the control and conversion functions of high-power electrical energy. Realize on/off control of high-voltage circuits, supporting high voltage and high current operating conditions; Used for power electronic conversion processes such as rectification, inversion, and chopping; Featuring fast switching characteristics and high reliability, suitable for harsh industrial environments.
Description
1. Product positioning and application
Product type:
3BHL000389P0104 belongs to ABB’s industrial control module, which may be used in PLC (programmable logic controller), distributed control system (DCS) or robot control system, responsible for signal processing, logic operation and communication interaction.
Core functions:
Processing digital and analog input/output signals;
Support industrial communication protocols such as Profinet and Modbus to enable data exchange between devices;
Equipped with diagnostic function, real-time monitoring of system status and feedback of abnormal information.
2. Technical specifications (typical parameters)
Power input:
Usually supports 24V DC power supply, with reverse polarity protection and overvoltage protection.
Communication interface:
May integrate Ethernet, RS-485, or Profibus interfaces;
Supports multiple industrial protocols, such as Profinet, EtherNet/IP, etc.
I/O characteristics:
If it is an I/O module, it may include multiple digital input/output (DI/DO) and analog input/output (AI/AO);
The signal types include 24V DC, 4-20mA, etc., supporting high-precision data acquisition.
Processing ability:
Built in microprocessor, supporting μ s level logical operations;
Memory configuration may include RAM and Flash for program execution and data storage.
3. Application scenarios
Industrial automation: production line control, mechanical arm logic management;
Power system: substation automation, motor status monitoring;
Robot control: Collaborate with ABB robot controllers to achieve motion control and task scheduling.
