Model: UFC760BE145, 3BHE004573R0145
Type: Phase modulator
Electrical parameters
Working voltage: 230V
Output frequency: 40kHz
Wetting voltage: 24V DC
Local bus current (12V DC nominal): 50mA typical value, maximum value of 75mA per card
On site circuit power: per card 150mA@24V DC (+20%/-15%), 15mA per card at 120V AC
Load current: up to 1A
Input impedance: 60K Ω
Description

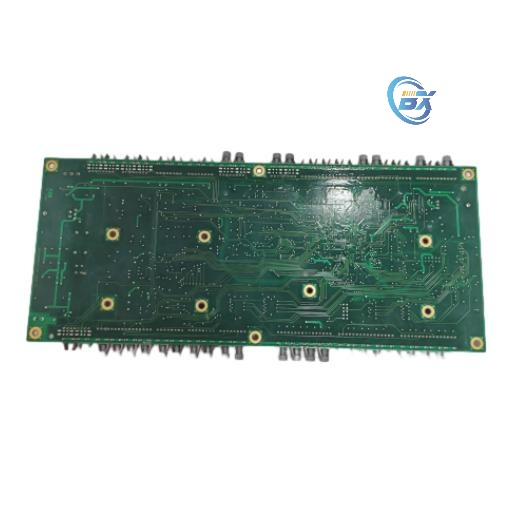

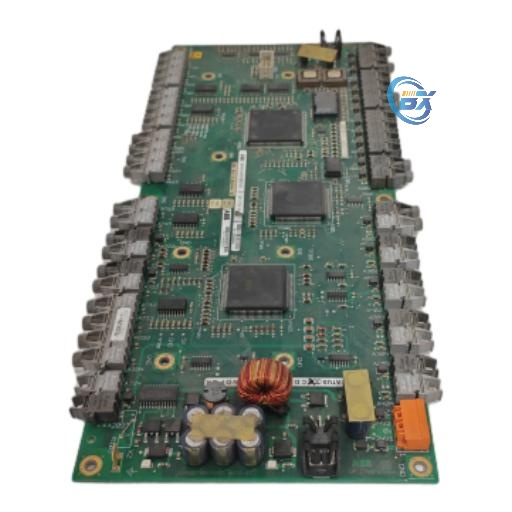

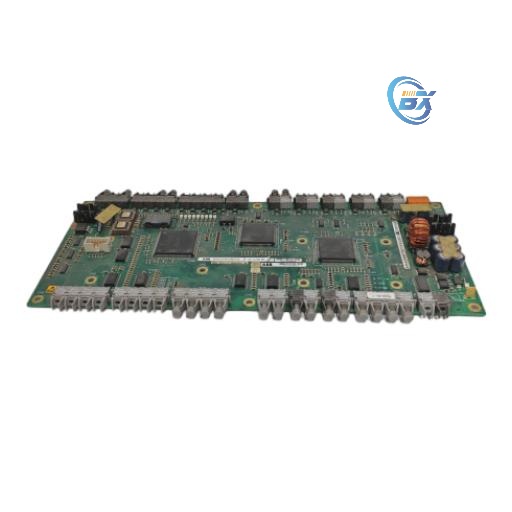

ABB UFC760BE145 3BHE004573R0145 Phase Modulator
Isolation characteristics
Each channel is optically isolated from the system and tested at 1500V DC in the factory.
Each channel is optically isolated from the system at a detection level of 250V AC, with a detection level of>1.4mA when turned on and<0.56mA when turned off.
Number of channels: 8
Communication Protocol: Supports Modbus communication protocol and can be seamlessly integrated into existing control systems for easy setup and monitoring through standard industrial interfaces.
Control type: Using pulse width modulation (PWM) control, it can provide smooth and accurate output signals, suitable for applications that require precise control of electrical loads.
Environmental adaptability: The working temperature range is -20 ° C to+60 ° C, and it can operate continuously in harsh industrial environments.
Other: Optional 2.0A fuse for circuit protection.
