It has high-speed data acquisition capability and can perform high-speed sampling in multiple channels simultaneously, suitable for the acquisition of rapidly changing signals. The module has multiple acquisition channels, which can simultaneously acquire multiple signal sources, and the sampling rate and resolution can be flexibly set. In terms of communication, it supports communication methods such as serial port, Ethernet, industrial bus, as well as multiple communication protocols such as Modbus, Profinet, EtherNet/IP, which can achieve data transmission and protocol conversion between devices. It can also collect and transmit device data in real time and support remote control of devices.
Hardware parameters: It may include a microcontroller MPC5200 (Freescale, Power PC Core 603) with a clock speed of 396MHz, 10/100Mbps Ethernet MAC, two CAN controllers, three serial interfaces (UART), and a large programmable logic device (FPGA).
Description

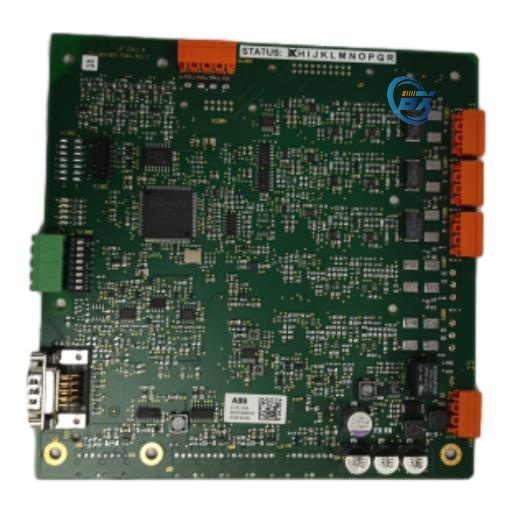

Basic use: It is a component of ABB frequency converters, mainly used to control the operation of medium and high voltage motors, and can execute complex control algorithms.
Functional features: It has high-speed data acquisition capability and can perform high-speed sampling simultaneously in multiple channels, suitable for the acquisition of rapidly changing signals. The module has multiple acquisition channels, which can simultaneously acquire multiple signal sources, and the sampling rate and resolution can be flexibly set. In terms of communication, it supports communication methods such as serial port, Ethernet, industrial bus, as well as multiple communication protocols such as Modbus, Profinet, EtherNet/IP, which can achieve data transmission and protocol conversion between devices. It can also collect and transmit device data in real time and support remote control of devices.
Hardware parameters: It may include a microcontroller MPC5200 (Freescale, Power PC Core 603) with a clock speed of 396MHz, 10/100Mbps Ethernet MAC, two CAN controllers, three serial interfaces (UART), and a large programmable logic device (FPGA).
Installation method: Suitable for installation in standard 19 inch (483mm) wide mounting racks, can be rack mounted, with optional 16 way 3U high rear maintenance rack and 6U high front maintenance rack.
Working voltage: Data shows that its working voltage is 220VDC, but there may be slight differences due to model and application scenarios.
Application areas: Can be applied to lifting machinery, winding machinery, metal processing machinery, handling machinery and other equipment.
