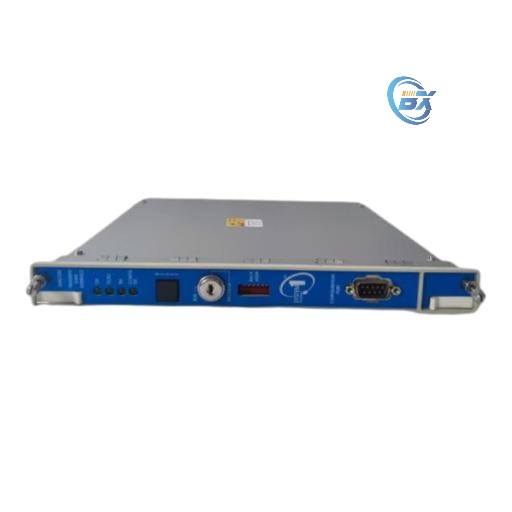

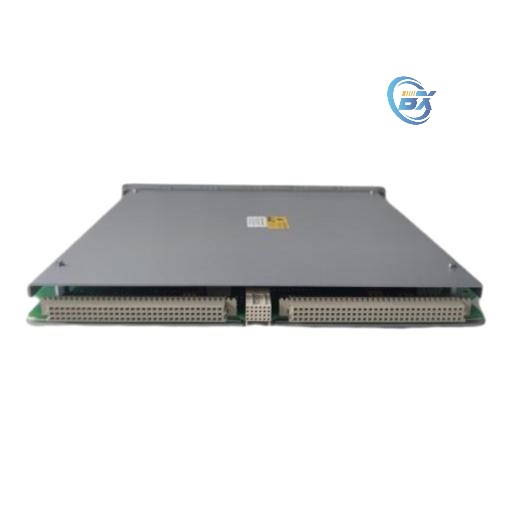

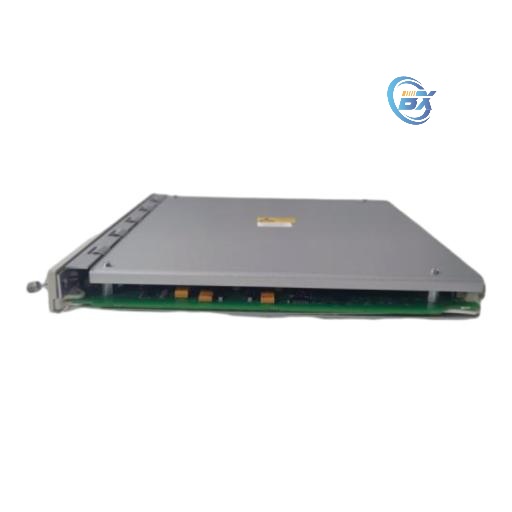

Bently Nevada 3500/22M 138607-01 | Transient Data Interface Module

Description

Function Overview: The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 status monitoring and diagnostic software and 3500 system configuration software). It combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors such as TDXnet.
Working principle: TDI is located in the slot next to the 3500 rack power supply, connected to M-series monitors (3500/40M, 3500/42M, etc.), continuously collects steady-state and transient dynamic (waveform) data, and transmits this data to the host software through an Ethernet link. The static data capture capability is a standard feature of TDI, which enables the use of optional channels to enable disks. TDI can also capture dynamic and high-resolution transient data.
Module features: TDI integrates communication processor functionality within the 3500 rack, but it is not part of the critical monitoring path and has no impact on the normal operation of the entire automatic mechanical protection monitoring system. Each 3500 rack requires a TDI or RIM, which always occupies slot 1 (adjacent to the power supply).
Input: The front panel has USB-B interface and supports 10Base – T/100Base – TX Ethernet (automatic sensing) or 100Base – FX fiber optic Ethernet.

Specification parameters:
Dimensions: 241.3mm × 24.4mm × 241.8mm.
Weight: 0.91kg.
Power consumption: 10.5 watts.
Output: The front panel has LED indicator lights, including OK indicator light (indicating normal operation of 3500/22M), TX/RX indicator light (indicating communication status with other modules in the rack), TM indicator light (indicating whether the 3500 rack is in trip doubling mode), and Config OK indicator light (indicating whether the 3500 rack has a valid configuration).
