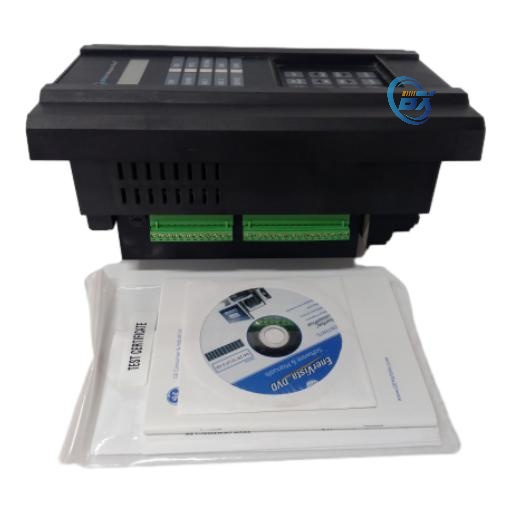

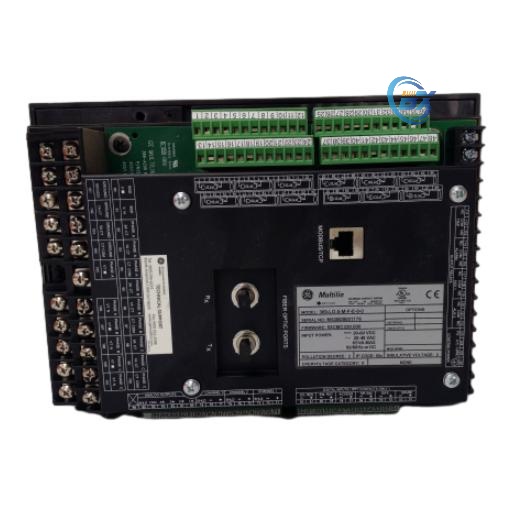

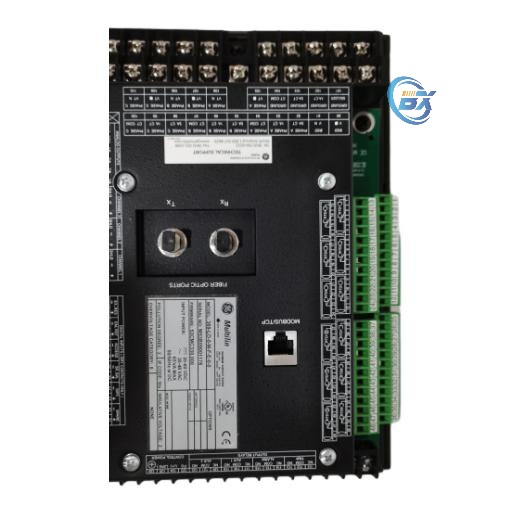

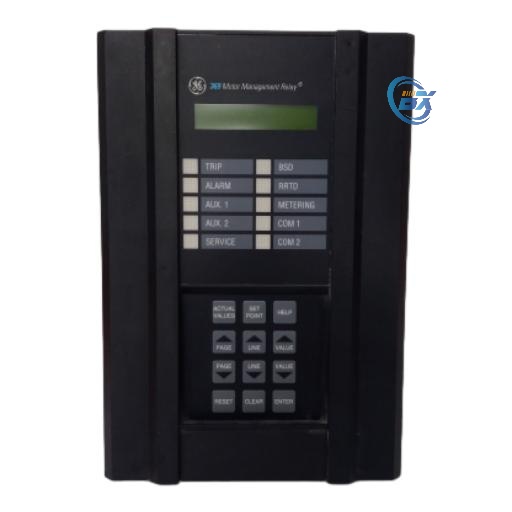

GE 369-LO-0-M-0-0-0-E belongs to the 369 series motor management relay (MMR), which is suitable for protecting and monitoring mechanical systems and three-phase motors in low voltage environments.
Description
Input power supply: Low voltage input power, operating voltage range of 24-48V DC, frequency of 50/60Hz.
Current transformer input: 1A/5A on the secondary side, with a transformation ratio of 50:0.025.
Analog output: Fully isolated active output, programmable maximum output of 20.2mA (4-20mA signal).
Thermal resistance input: Supports thermal resistance sensors of 100 Ω platinum (DIN 43760), 100 Ω nickel, 120 Ω nickel, 10 Ω copper, and other types.
Communication interface: may be equipped with DB9 female Profibus interface, etc., supporting monitoring through the front panel or communication port, and parameters can be set through the front panel or Enervista software.
Other: Equipped with enhanced diagnostic function and panel display, the motor start data recorder has a 1-second pre trigger duration at the trigger position, and a maximum power of 65VA.
