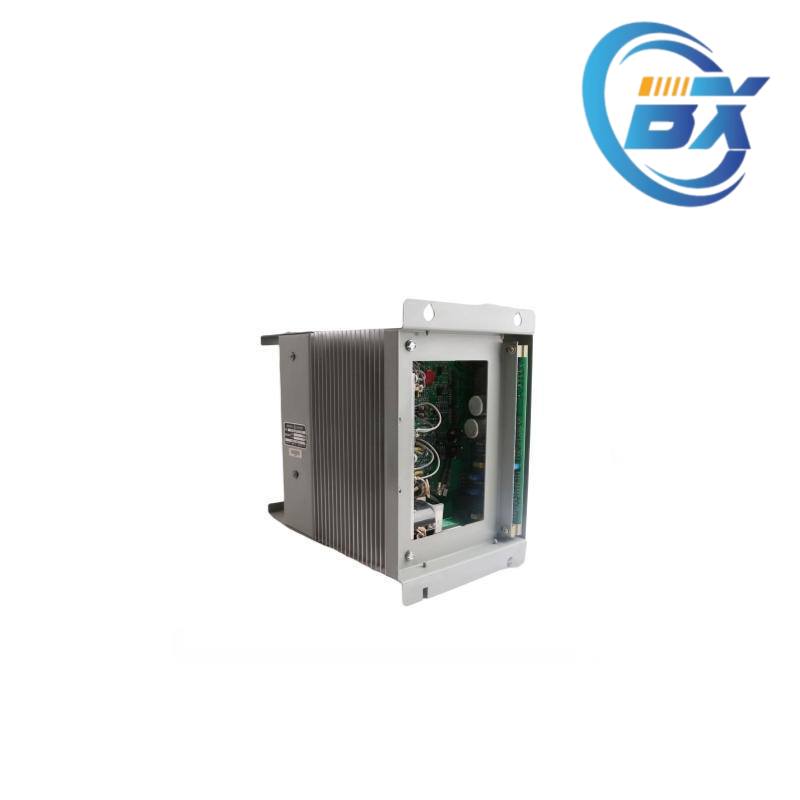

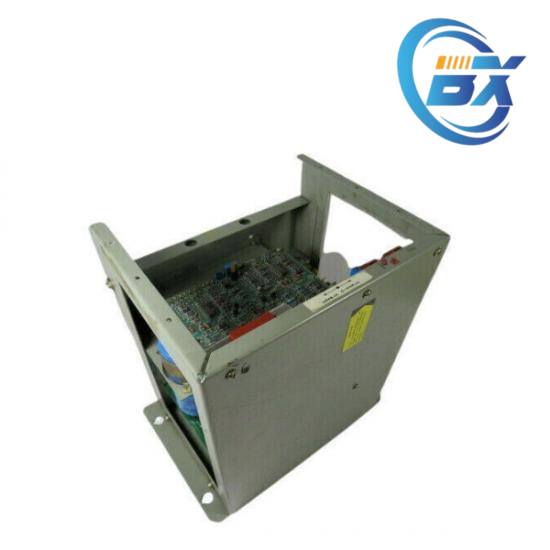

The DS3820PSCB1C1B is a power supply module designed for GE’s Mark IV series. It provides critical power to gas and steam turbine systems, ensuring efficient operation and automation of control sequences, temperature control, and turbine protection.
Description
GE DS3820PSCB1C1B Power Supply Module for Gas and Steam Turbine Systems
Designed exclusively for GE Mark IV series turbine control systems, the DS3820PSCB1C1B power supply module delivers critical voltage regulation for gas and steam turbine operations. This high-performance unit ensures uninterrupted automation of combustion sequencing, temperature management, and turbine startup procedures in demanding industrial environments.
Technical Specifications
| Brand | General Electric (GE) |
| Compatibility | Mark IV Turbine Control Series |
| Input Voltage | AC |
| Output Voltage | DC +5V, ±15V |
| Operating Temp | -40°C to 85°C |
| Humidity Range | 0-95% non-condensing |
| Safety Features | Fuses, circuit protection, vibration resistance |
Applications & Compatibility
Engineered for critical power distribution in turbine control systems, this module features robust metal housing with optimized thermal management for continuous operation. Key applications include:
- Gas turbine combustion control and sequencing
- Steam turbine startup and temperature regulation
- Vibration monitoring systems in power generation
- Safety-critical flame detection and fire prevention
Compatible with DS3800 series PCBs and designed for seamless integration into Mark IV control racks. Ensures protection against electrical fluctuations and mechanical stress in high-vibration environments.
Service & Support
Module-plc-dcs.com provides genuine GE industrial components sourced directly from authorized channels. Benefit from:
- 1-year performance warranty on all components
- Competitive pricing with volume discounts
- Global shipping with real-time tracking
- Technical support from certified engineers
Can’t find your specific model? Call our specialists for custom sourcing solutions. Actual pricing available upon quotation request.
Explore our full range of turbine control components at www.module-plc-dcs.com or email sakyzeng@foxmail.com for technical specifications.
