GE IS200TRLYH1BGF is a terminal relay card designed for its Mark VI series turbine control system. As part of the Mark VI series, it can seamlessly integrate with other control modules from GE, such as input/output modules, processor modules, communication modules, etc., to form a complete control system.
Description
Functional purpose: It is a key component in the turbine control system, used to convert control signals into actual switch actions, thereby controlling various electrical and mechanical equipment, ensuring the stable operation of the turbine. In the event of a malfunction, it can serve as a Simplex trip board to protect electrical equipment and circuits, disconnecting the circuit.
Performance characteristics:
High precision regulation: It can provide precise voltage regulation, support dynamic adjustment of current, voltage, and frequency, ensure system stability, and can cope with load fluctuations and other situations.
Strong environmental adaptability: Adopting industrial grade design, it can adapt to extreme environments such as high temperature, high humidity, and vibration, with strong anti-interference ability, and can operate stably under harsh conditions.
Complete protection function: Built in overload, short circuit, overvoltage protection and other functions can prevent equipment from being damaged due to abnormal operation.

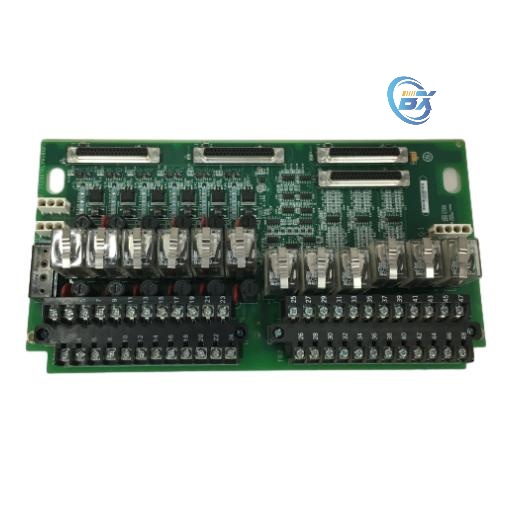

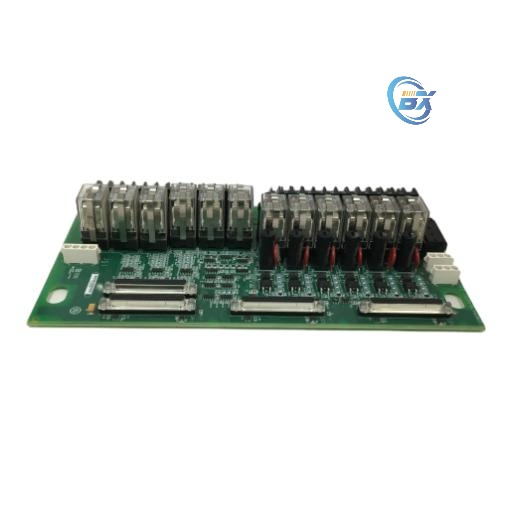

Appearance and structure: The circuit board is relatively large, rectangular in shape, and contains a large number of electronic components. The center is a series of vertically arranged relays or contactors, with six black transistors on either side of the upper relay. Each transistor is paired with a circular red metal oxide varistor, and the circuit board is also covered with many integrated circuits. In addition, there are two long black terminal blocks, which are the largest components on the circuit board. Each terminal block has 24 small terminals, numbered from 1 to 48.
Size and weight: The height is approximately 8.25 centimeters and the weight is approximately 2 pounds.
Working temperature: The working temperature range is -35 ℃ to 65 ℃.
Compatibility: As part of the Mark VI series, it can seamlessly integrate with other control modules from GE, such as input/output modules, processor modules, communication modules, etc., to form a complete control system.
