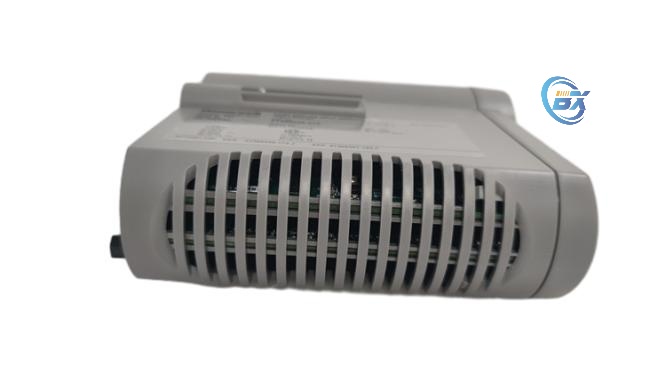

HONEYWELL MC-PDOX02 51304487-150 Digital output processor

Description

Basic function: It is a 16 point digital output module that can output the controller’s digital signals to external devices such as relays, contactors, indicator lights, etc. It is used to control the start stop and status indication of equipment, achieving discrete control of industrial processes.
Hardware features: Typically designed with a compact circuit board, suitable for installation in standard industrial control cabinets. Equipped with interfaces for connecting with other modules or devices, such as bus interfaces, it can easily access the control system network and achieve data communication with controllers and other I/O modules. It may be equipped with status indicator lights to display the working status of each output channel, facilitating on-site debugging and fault diagnosis.
Electrical characteristics: The output signal is usually a standard digital signal, such as 24V DC, 48V DC, etc., to meet the needs of different external devices. Having a certain output driving capability, it can provide sufficient current for the connected load to drive small relays, indicator lights, and other devices. Equipped with electrical isolation function, it can prevent external electrical interference from entering the control system, and also avoid mutual interference between modules, improving the stability and reliability of the system.
Application areas: Widely used in industrial fields such as petroleum, chemical, metallurgical, pharmaceutical, papermaking, and power generation. In industrial automation control systems, it is used to achieve logical and sequential control of various equipment. For example, in the chemical production process, it can be used to control the opening and closing of valves, the start and stop of pumps, etc; In the power system, it can be used to control the opening and closing of circuit breakers, display of signal lights, etc.
