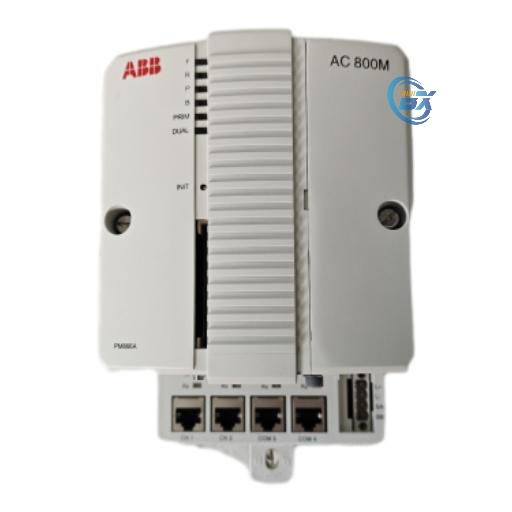

Product model: PM866K01.
Country of Origin: United States.
Product Code: 3BSE050198R1.
Clock frequency: 133MHz.
Performance: It takes 0.09ms to perform 1000 Boolean operations.
Memory: 64MB RAM is available for application use, and 46.559MB flash memory is used for storage.
Communication ports: There are two RJ45 Ethernet ports (CN1, CN2) used to connect to the control network; Two RJ45 serial ports, where COM3 is the RS-232C port with modem control signal, and COM4 is the isolated port used to connect configuration tools.
Dimensions: 135mm × 186mm × 119mm.
Weight: Approximately 1.2-2kg.
Description
ABB PM866K01 high-performance industrial automation controller is based on the Intel Atom E3900 processor and comes in 2-color and 4-color versions. It is equipped with up to 8GB of ECC memory and 64GB of EMM storage, and can support operating systems such as Linux and Windows 10 IoT Enterprise, enabling fast and accurate control and data processing.
Communication interface: Equipped with high-speed ports, including 1 Gigabit Ethernet port, 2 SATA 3.0 ports, 2 USB 3.0 ports, 8 USB 2.0 ports, 4 PCIe x1 Gen 3 ports, 1 LVDS port, and 1 DDI port (supporting HDMI, DVI, and DP), it can connect various industrial equipment and sensors for easy data transmission and device integration.
Input/output characteristics: There are eight standard analog voltage input ranges and two factory current input ranges (4-20mA or 10-50mA), supporting 16 single ended or 8-differential inputs. It has data sampling buffer, hardware real-time calibration function and oversampling technology, as well as unique channel by channel programmable gain characteristics, which can ensure data accuracy and adapt to different signal gain requirements.
Sampling rate: Its high-speed USB 2.0 device has a sampling rate of up to 500kHz, which can capture and process rapid changes in industrial environments in real time, ensuring timely and accurate control response.

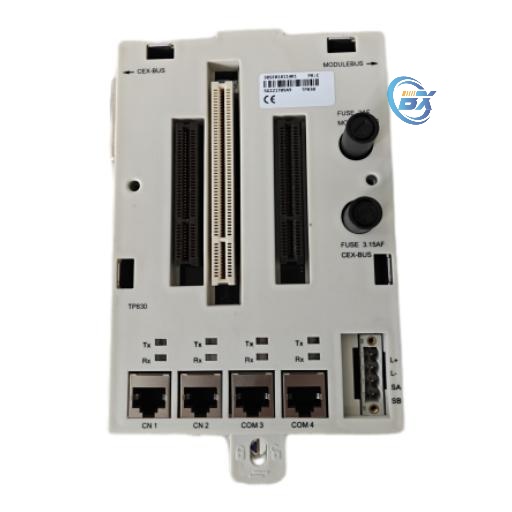

Mechanical specifications: Adopting a miniaturized design with dimensions of 4 inches x 4 inches x 1.25 inches, it is easy to install and deploy in various industrial environments. The weight is approximately 1100 grams (including TP830 and bus terminals).
Electrical parameters: The power supply is 230V AC, with a frequency of 30kHz.
