Processor: Intel Xeon E5-2690v3 dual core processor, with a clock speed of 2.6GHz, possessing powerful computing capabilities, capable of quickly processing complex control logic and large amounts of data.
Memory and Storage: 32GB DDR4 memory, 240GB SSD storage, supports real-time data processing and large-scale data storage, ensuring smooth system operation and data security.
Communication interface: 2 Gigabit Ethernet ports, 2 RS-232 serial ports, 1 USB interface, supporting multiple communication protocols such as Modbus, Profibus DP, Ethernet, etc., and can flexibly integrate with different devices.
Input voltage: 24V DC.
Working temperature range: -20 ℃ to 55 ℃.
Dimensions: 114mm x 178mm x 25mm.
Weight: Approximately 3 kilograms.
Description

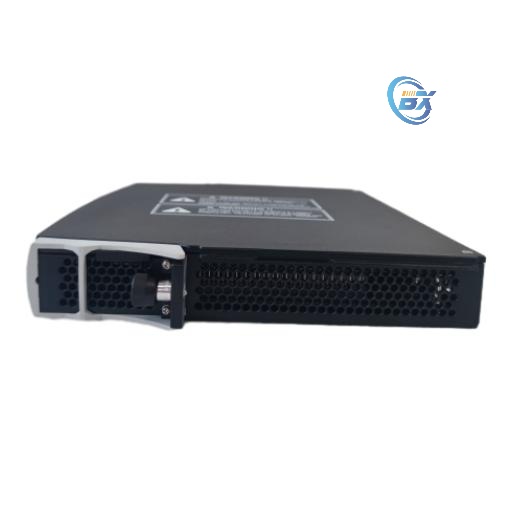

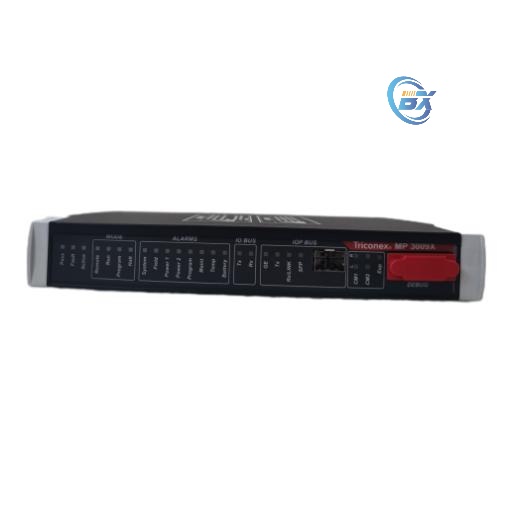

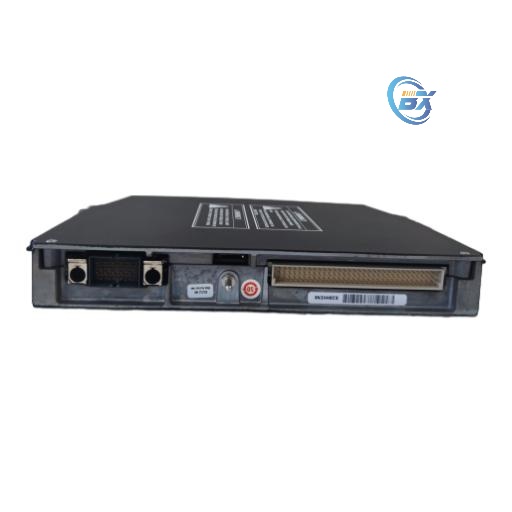

TRICONEX 3009 is an enhanced main processor (UMP) module
Hardware specifications
CPU: Equipped with Intel Xeon E5-2690v3 dual core processor, with a clock speed of 2.6GHz, it has powerful computing power and can quickly process complex control logic and large amounts of data.
Memory and Storage: Equipped with 32GB DDR4 memory and 240GB SSD storage, it supports fast processing of real-time data and storage of large amounts of data, ensuring smooth system operation and data security.
Communication interface: Provides 2 Ethernet ports, 2 RS-232 serial ports, and 1 USB interface for easy data exchange with other devices or systems. Supports multiple communication protocols such as Modbus, Profibus DP, Ethernet, etc., and can flexibly integrate with different devices.
Functional Features
High reliability: Adopting a Triple Modular Redundancy (TMR) architecture, it includes three identical sub circuits, each of which is independently controlled and “voted” on for input and output through a dedicated hardware/software architecture. Even if one module fails, the system can still rely on the other two normal modules to continue operating, ensuring the continuity and stability of the industrial automation system and adapting to harsh industrial environments.
Flexibility and Scalability: Supports up to 118 I/O modules (analog and digital) and optional communication modules, connecting various types of sensors and actuators to meet different control needs. It can also support remote I/O modules up to 12km away from the host, facilitating distributed deployment and expansion of the system on a large scale.
Intelligent I/O module: The input and output modules have intelligent functions, and each I/O module has three microprocessors. The microprocessor of the input module is responsible for filtering and repairing input signals, as well as diagnosing hardware faults on the module; The output module microprocessor provides information for the voting of output data, checks the validity of the output status through the feedback loop voltage at the output terminal, and can diagnose field line problems, thereby reducing the workload of the main processor.
