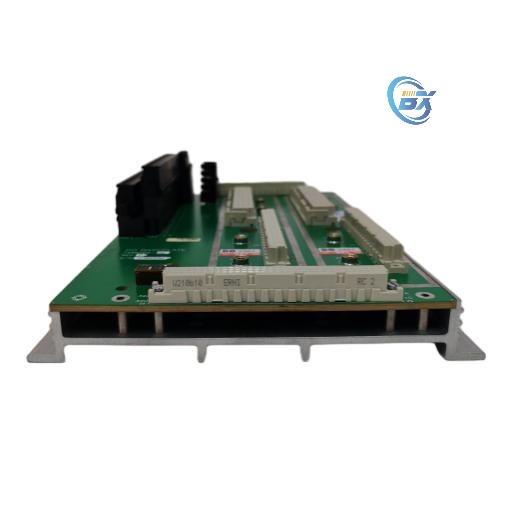

TRICONEX DO2401 7400209-030 digital output module

Description

Functional Features
High reliability design: Adopting redundancy technology and fault safety mechanisms to ensure stable and reliable operation in harsh industrial environments, meeting the strict requirements of safety related systems. For example, dual redundant output channels may be used, where when one channel fails, the other channel can still function normally to ensure system continuity.
Multiple output types support: It can provide multiple types of digital outputs, such as relay outputs, transistor outputs, etc., to adapt to different types of external devices, such as solenoid valves, contactors, indicator lights, etc.
Diagnosis and monitoring function: It has strong self diagnosis capability and can monitor the working status of the module in real time, including output short circuit, open circuit, overcurrent and other faults. Detailed diagnostic information is sent to the control system through status indicator lights and communication interfaces, making it convenient for maintenance personnel to quickly locate and troubleshoot. At the same time, it may also support real-time monitoring of output signals to detect abnormal situations in a timely manner.
technical specifications
Number of output channels: usually 16 channels or 32 channels, etc., can control multiple external devices simultaneously.
Output signal type:
Relay output: The contact capacity is generally 2A-5A, which can withstand high voltage and current, and is suitable for controlling high-power equipment such as contactors, solenoid valves, etc. The contact life is usually over hundreds of thousands of times, with high reliability and stability.
Transistor output: The output current is generally between a few hundred milliamps and several amperes, with fast response speed, suitable for controlling low-power devices and situations that require high response speed, such as indicator lights, small relays, etc.
Output voltage range: varies depending on the type of output. For example, relay outputs typically support multiple voltage levels such as 24V DC, 110V AC, 220V AC, etc; The transistor output is generally 24V DC.
Signal isolation: Optoelectronic or electromagnetic isolation technology is used between channels and between output signals and internal circuits of modules, with an isolation voltage of up to thousands of volts, effectively preventing signal interference and electrical noise propagation, and improving system stability and anti-interference ability.
physical property
Size: Following standard industrial module dimensions, it is easy to install in various industrial control cabinets or racks. The specific dimensions may vary depending on different packaging forms, generally ranging from tens of millimeters to over a hundred millimeters in width, height, and depth.
Weight: Lightweight, usually around a few hundred grams, convenient for installation and maintenance personnel to operate.
Environmental requirements
Working temperature range: generally -40 ℃ -85 ℃, able to adapt to various harsh industrial environment temperature changes, whether it is in cold outdoor or high-temperature industrial workshops, it can work stably.
Humidity range: It can operate normally in an environment with a relative humidity of 5% -95% RH (without condensation) and has a certain tolerance to humid environments.
