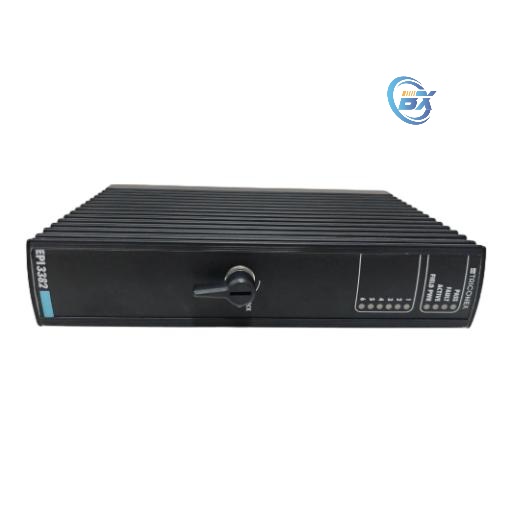

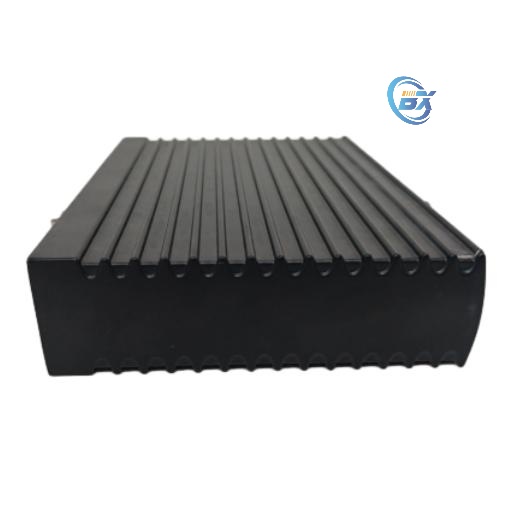

TRICONEX EPI3382 Multiple input/output channels

Description

technical specifications
Channel type and quantity: There may be multiple input and output channels, with the specific quantity depending on the product design. For example, there may be 8 or 16 channels, which can be connected to multiple external devices simultaneously to achieve the acquisition and control of multiple signals.
Input/output signal types: Supports multiple signal types, including analog signals (such as 4-20mA current signals, 0-10V voltage signals) and digital signals (TTL, CMOS level signals, or dry junction signals); The output signal may include analog output (such as 0-20mA current output, 0-10V voltage output) and digital output signal to meet the interface requirements of different external devices.
Signal accuracy and resolution: For analog signals, it has high accuracy and resolution, such as an accuracy of ± 0.1% and a resolution of 12 or 16 bits, which can accurately collect and output analog signals, ensuring precise control of industrial processes; For digital signals, it can accurately identify and output high and low level states.
Isolation characteristics: In order to prevent external interference from affecting the control system, electrical isolation is usually carried out between the input and output channels and the internal circuits of the system, as well as between different channels. The isolation voltage can reach thousands of volts, effectively improving the stability and reliability of the system and enhancing the anti-interference ability of the module in harsh industrial environments.
Response time: Fast response speed, usually in milliseconds, can quickly transmit changes in input signals to the control system and output control signals to external devices, ensuring timely response of the system to external events and meeting the real-time requirements of industrial process control.
Power requirements: The working power supply is generally 24V DC, with a certain voltage tolerance range, such as 24V DC ± 10% or ± 20%, to adapt to fluctuations in power supply voltage in industrial sites.
mechanical properties
Size: The module has a compact external size, making it easy to install in standard industrial control cabinets. The specific size may vary depending on the product design, but usually the length, width, and height range from tens of millimeters to over a hundred millimeters to accommodate different installation space requirements.
Weight: The weight is relatively light, usually around a few hundred grams, which will not cause excessive burden on the installation bracket and is convenient for installation and maintenance.
Installation method: Supports DIN rail installation, which is convenient, fast, easy to maintain and replace modules; At the same time, screw fixation installation can also be used according to actual needs, providing flexible installation options.
